Product Summary

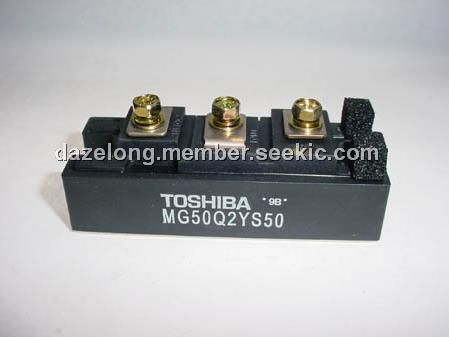

The MG50Q2YS40 is a N channel IGBT. The applications of it are high power switching and motor control.
Parametrics
MG50Q2YS40 features: (1)high input impedance; (2)high speed:tf=0.5us(max.), trr=0.5us(max.); (3)low saturation voltage:VCE(sat)=4.0V(max.); (4)enhancement-mode; (5)includes a complete half bridge in one package; (6)the electrodes are isolated from case.
Features
MG50Q2YS40 absolute maximum ratings: (1)collector-emitter voltage:1200V; (2)gate-emitter voltage:±20V; (3)collector current: DC:50A, 1ms:100A; (4)forward current: DC:50A, 1ms:100A; (5)collector power dissipation:400W; (6)junction temperature:150℃; (7)storage temperature range:-40℃ to +125℃; (8)isolation voltage:2500V; (9)screw torque:3/3N.m.
