Product Summary

The ESAD92-02 is a low loss, super high speed rectifier. The application of it is high speed power switching.

Parametrics

ESAD92-02 absolute maximum ratings: (1)repetitive peak reverse voltage:200V; (2)average output current:20A; (3)surge current:100A; (4)operating junction temperature:-40℃ to +150℃; (5)storage temperature:-40℃ to +150℃.

Features

ESAD92-02 features: (1)Low VF; (2)super high speed switching; (3)high reliability by planer design.

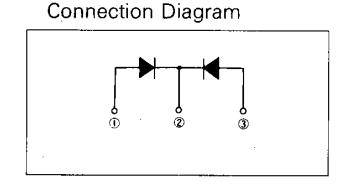

Diagrams

ESAD92-02 test circuit
