Product Summary

The KIA78L05F is a three terminal positive voltage regulator bipolar linear integrated circuit.

Parametrics

KIA78L05F absolute maximum ratings: (1)Input Voltage, VIN: 35V; (2)Power Dissipation PD: 500 mW; (3)Operating Junction Temperature Tj: -30 to 150℃; (4)Operating Temperature Topr: -30 to 75℃; (5)Storage Temperature Tstg: -55 to 150℃.

Features

KIA78L05F features: (1)Best Suited to Power Supply for TTL, C2-MOS; (2)No External Part Needed; (3)Built-in Thermal Protective Circuit; (4)Max. Output Current 150mA (Tj=25 ); (5)Packaged in Power Mini.

Diagrams

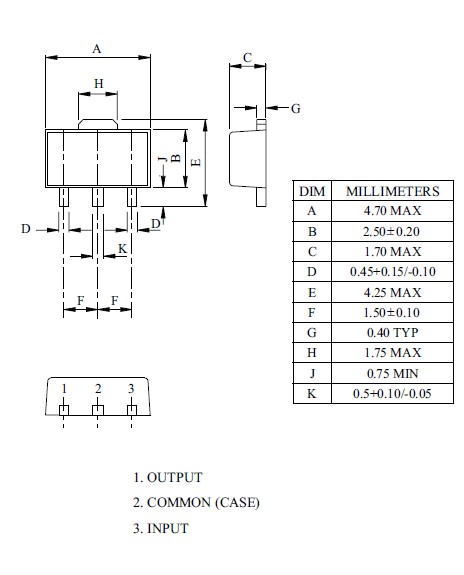

KIA78L05F package diagram
