The 7MBR100U4B120 is a Power Integrated Module.
Parametrics
7MBR100U4B120 absolute maximum ratings: (1)Inverter Collector-Emitter voltage:1200V; (2)Inverter Gate-Emitter voltage:±20V; (3)Inverter Collector Power Dissipation:390W; (4)Brake Gate-Emitter voltage:1200V; (5)Brake Collector-Emitter voltage:±20V; (6)Brake Collector Power Dissipation:205W; (7)Brake Repetitive peak reverse Voltage:1200V; (8)Converter Repetitive peak reverse Voltage:1600V; (9)Converter Surge Current:520A; (10)Junction temperature:150℃; (11)Storage temperature:-40℃ to +125℃.
Features
7MBR100U4B120 features: (1)Inverter Gate-Emitter leakage current:1.0mA; (2)Inverter Zero gate voltage Collector current:200nA; (3)Inverter Gate-Emitter threshold voltage:4.5V to 8.5V; (4)Inverter Input capacitance:8nF; (5)Inverter Reverse recovery time:0.35us; (6)Brake Zero gate voltage Collector current:1.0mA; (7)Brake Gate-Emitter leakage current:200nA; (8)Brake Reverse current:1.0mA; (9)converter Reverse current:1.0mA.

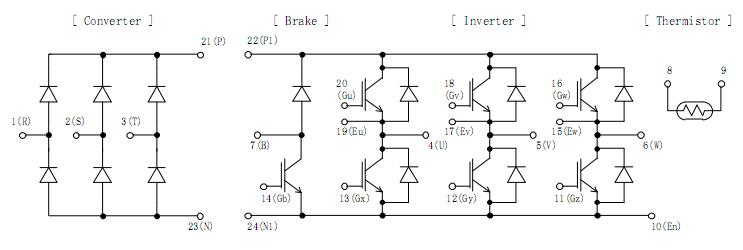

Diagrams
