Product Summary

The MUR1620CT is a 16.0 AMPS. switchmode power rectifier.

Parametrics

MUR1620CT absolute maximum ratings: (1)Average Rectified Forward Current, Total Device, (Rated VR), Tc=150℃ IF(AV): 8.0Amps. Total Device: 16Amps; (2)Peak Rectified Forward Current (Rated VR, Square Wave, 20 KHz), Tc=150℃ Per Diode Leg, IFM: 16 Amps; (3)Nonrepetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz)IFSM: 100 Amps; (4)Operating Junction Temperature and Storage Temperature TJ, TSTG: -65 to + 175℃; (5)Maximum Thermal Resistance, Junction to Case RθJC: 2.0℃ /W.

Features

MUR1620CT features: (1)Ultrafast 35 and 60 Nanosecond Recovery times; (2)175℃ operating Junction Temperature; (3)Popular TO-220 Package; (4)Epoxy meets UL94, V0 @ 1/8; (5)High temperature glass passivated junction; (6)High voltage capability to 600 volts; (7)Low leakage specified @ 150℃ case temperature; (8)Current derating @ both case and ambient temperatures.

Diagrams

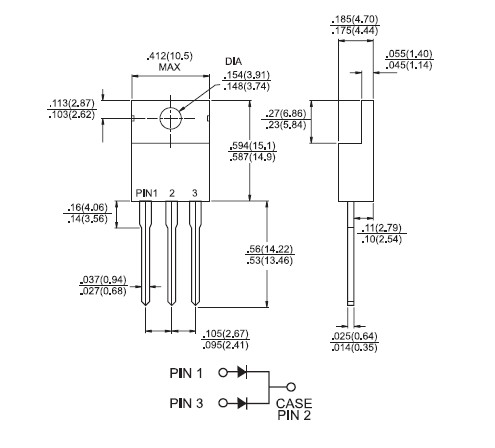

MUR1620CT Dimensions in inches
