Product Summary
The STK392-020 is a convergence correction circuit IC for video projectors. The STK392-020 incorporates three output amplifiers in a single package, making possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using just two hybrid ICs. The output circuits use a class-B configuration, in comparison with the STK392-040, realizing a more compact package and low cost.
Parametrics
STK392-020 absolute maximum ratings: (1)maximum supply voltage:±38V; (2)maximum collector current:3.0A; (3)thermal resistance:3.0℃/W; (4)junction temperature:150℃; (5)operating substrate temperature:125℃; (6)storage temperature:-30 to +125℃.
Features
STK392-020 features: (1)3 output amplifier circuits in a single package; (2)high maximum supply voltage(VCC max=±38V); (3)low thermal resistance(θj-c=3.0℃/W); (4)high temperature stability(Tc max=125℃); (5)separate predriver and output stage supplies; (6)output stage supply switching for high-performance designs; (7)low inrush current when power is applied.

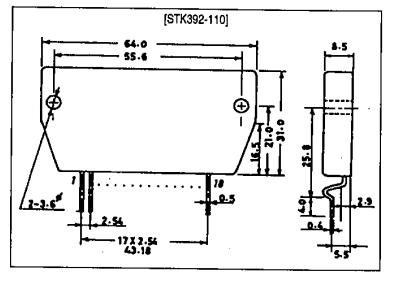

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

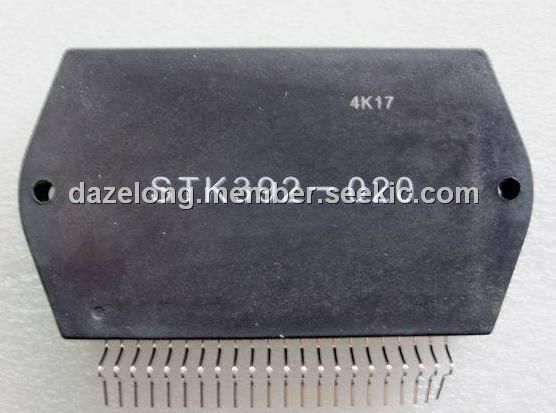

 STK392-020 |
Other |
|
Data Sheet |
Negotiable |
|
||||
