Product Summary
The HBCS-1100 is a fully integrated module designed for optical reflective sensing. The HBCS-1100 contains a 0.178 mm (0.007 in.) diameter 700 nm visible LED emitter and a matched I.C. photodetector. A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot 4.27 mm (0.168 in.) in front of the package. The HBCS-1100 reflected signal can be sensed directly from the photodiode or through an internal transistor that can be configured as a high gain amplifier.
Parametrics
HBCS-1100 absolute maximum ratings: (1)Storage Temperature TS: -40 to +75 ℃; (2)Operating Temperature TA: -20 +70 ℃; (3)Lead Soldering Temperature: 260 for 10 sec. ℃; (4)Average LED Forward Current IF: 50 mA 2; (5)Peak LED Forward Current IFPK: 75 mA; (6)Reverse LED Input Voltage VR: 5 V; (7)Package Power Dissipation PP: 120 mW ; (8)Collector Output Current IO: 8 mA; (9)Supply and Output Voltage VD, VC, VE: -0.5 to 20 V; (10)Transistor Base Current IB: 5 mA; (11)Transistor Emitter Base Voltage VEB: 0.5 V.
Features
HBCS-1100 features: (1)Focused Emitter and Detector in a Single Package; (2)High Resolution.190 mm Spot Size; (3)700 nm Visible Emitter; (4)Lens Filtered to Reject Ambient Light; (5)TO-5 Miniature Sealed Package; (6)Photodiode and Transistor Output; (7)Solid State Reliability.

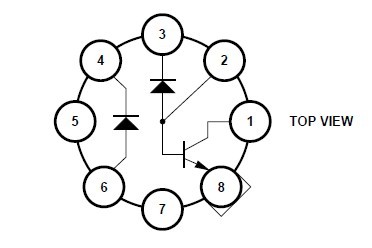

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HBCS-1100 |
Avago Technologies |
Optical Switches, Reflective, with Phototransistor Output Sensor Barcode Sens or |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
HBCS-1100 |
Avago Technologies |
Optical Switches, Reflective, with Phototransistor Output Sensor Barcode Sens or |
Data Sheet |
Negotiable |
|
||||
|
