CM600HU-24F

Low Drive Power, Low VCE(sat), Trench Gate Design, Single IGBTMOD, 600 Amperes, 1200 Volts

Rated 5 Rating 5 | reviews | Write a review

Price:: US $165.00~175.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $165.00~175.00

PartNumber:: CM600HU-24F

Brand:: Power Integrations, Inc. - Power | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. dazelong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-02

From Other Seller

Part Number:CM600HU-24F
US $165.00 - 175.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

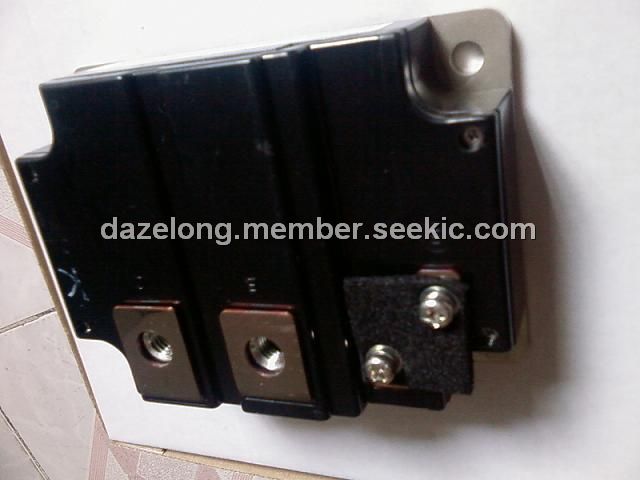

The CM600HU-24F is an IGBTMOD Module. It is designed for use in switching applications. The CM600HU-24F consists of one IGBT Transistor in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM600HU-24F are AC Motor Control, UPS, Battery Powered Supplies.

Parametrics

CM600HU-24F absolute maximum ratings: (1)Junction Temperature:-40℃ to 150℃; (2)Storage Temperature:-40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT):1200Volts; (4)Gate-Emitter Voltage (C-E SHORT):±20Volts; (5)Collector Current (Tc = 25℃):600Amperes; (6)Peak Collector Current:1200Amperes; (7)Emitter Current:600Amperes; (8)Peak Emitter Curren:1200Amperes; (9)Maximum Collector Dissipation:1900Watts; (10)Mounting Torque, M8 Main Terminal:95 in-lb; (11)Mounting Torque, M6 Mounting:40 in-lb; (12)Mounting Torque, M4 Terminal:15 in-lb; (13)Weight:600 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.):2500 Volts.

Features

CM600HU-24F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.
