Product Summary

The AD820AN is a precision, low power FET input op amp that can operate from a single supply of +3.0 V to 36 V, or dual supplies of ±1.5 V to ±18 V. The AD820AN has true single supply capability with an input voltage range extending below the negative rail, allowing the AD820AN to accommodate input signals below ground in the single supply mode. Output voltage swing extends to within 10 mV of each rail providing the maximum output dynamic range. The AD820AN is suitable for Battery Powered Precision Instrumentation, Photodiode Preamps, Active Filters, 12- to 14-Bit Data Acquisition Systems, Medical Instrumentation and Low Power References and Regulators.

Parametrics

AD820AN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 1.6 Watts; (3)Input Voltage: (+VS + 0.2 V) to – (20 V + VS); (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: ±30 V; (6)Storage Temperature Range: –65 to +125℃; (7)Storage Temperature Range: –65 to +150℃; (8)Operating Temperature Range: –40 to +85℃; (9)Lead Temperature Range: +260℃.

Features

AD820AN features: (1)True Single Supply Operation: Output Swings Rail-to-Rail; Input Voltage Range Extends Below Ground; Single Supply Capability from +3 V to +36 V; Dual Supply Capability from 61.5 V to 618 V; (2)Excellent Load Drive: Capacitive Load Drive Up to 350 pF; Minimum Output Current of 15 mA; (3)Excellent AC Performance for Low Power: 800μA Max Quiescent Current; Unity Gain Bandwidth: 1.8 MHz; Slew Rate of 3.0 V/ms; (4)Excellent DC Performance: 800μV Max Input Offset Voltage; 1 μV/℃ Typ Offset Voltage Drift; 25 pA Max Input Bias Current; (5)Low Noise: 13 nV/Hz @ 10 kHz.

Diagrams

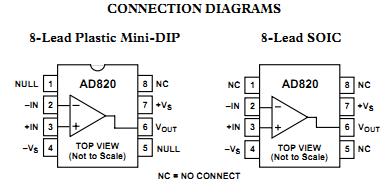

AD820AN connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

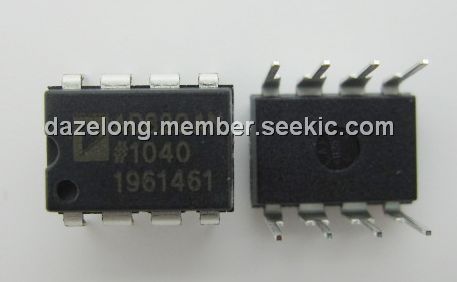

AD820AN
AD820AN

Analog Devices Inc

IC OPAMP FET R-R LP 8-DIP

Data Sheet

1-100: $1.60
AD820ANZ
AD820ANZ


IC OPAMP JFET R-R 1.8MHZ LP 8DIP

Data Sheet

0-1: $2.72
1-10: $2.43
10-25: $2.19
25-100: $1.99
100-250: $1.80
250-500: $1.61
500-1000: $1.36
1000-2500: $1.30
