Product Summary

The STK392-110 is a convergence correction circuit IC for video projectors. It incorporates three output amplifiers in a single package, making possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using ust two hybrid ICs. The STK392-110 is used in video projectors.

Parametrics

STK392-110 absolute maximum ratings: (1)Maximum supply voltage: max ±38 V; (2)Maximum collector current: 3.0 A; (3)Thermal resistance: 3.0℃/W; (4)Junction temperature: 150℃; (5)Operating temperature: 125℃; (6)Storage temperature: –30 to +125℃.

Features

STK392-110 features: (1)3 output amplifier circuits in a single package; (2)High maximum supply voltage (VCC max = ±38V); (3)Low thermal resistance (qj-c=3.0℃/W); (4)High temperature stability (TC max=125℃); (5)Separate predriver and output stage supplies; (6)Output stage supply switching for high-performance designs; (7)Low inrush current when power is applied.

Diagrams

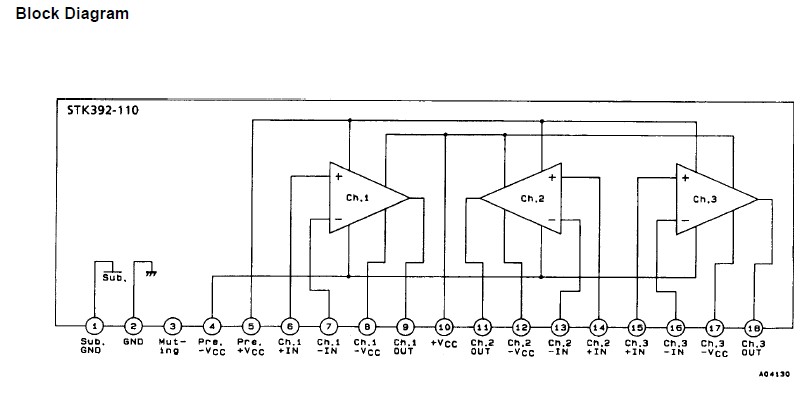

STK392-110 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STK392-110
STK392-110

Other


Data Sheet

Negotiable
