Product Summary

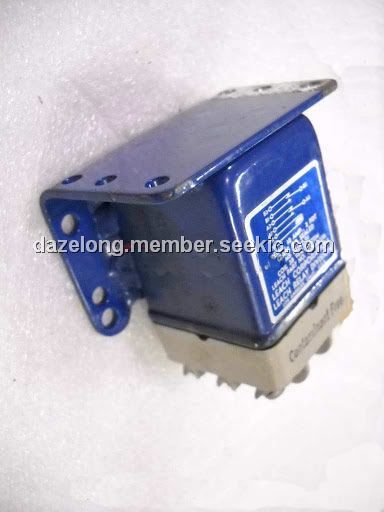

The MS24149-D1 is a relay.

Parametrics

MS24149-D1 absolute maximum ratings: (1)Nominal operating voltage: 28V; (2)Maximum operating voltage: 30V; (3)Pick-up voltage, max at +125: 18V; (4)Drop-out voltage, max: 7V; (5)Coil resistance ±10% at +25℃: 160ohms .

Features

MS24149-D1 features: (1)Contacts rated at 28 Vdc; 115 Vac, 400 Hz, 1 and 115/200 Vac, 400 Hz, 3; (2)Weight 200 grams max; (3)Dimensions max in mm 42.29 × 63.53 × 66.07; (4)Special models available upon request.

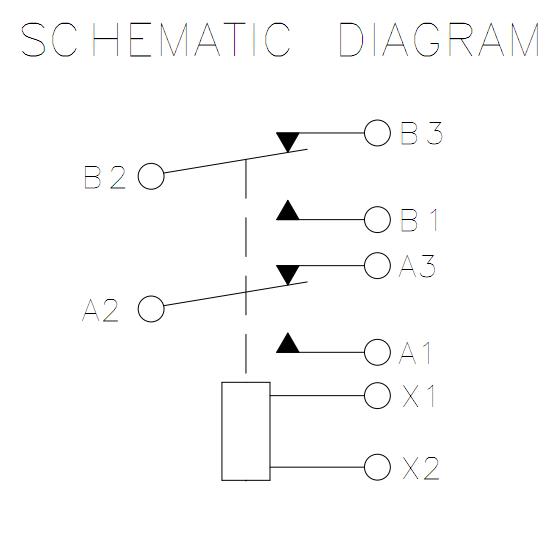

Diagrams

MS24149-D1 dimensions
