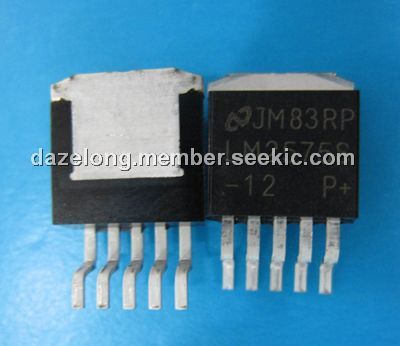

LM2575S

Step-Down Voltage Regulator, 1A, 15V, SOT263

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.65~0.85

PartNumber:: LM2575S

Brand:: National Semiconductor - NS | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. dazelong's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-28

From Other Seller

Part Number:LM2575S
US $0.65 - 0.85
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM2575S is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load with excellent line and load regulation. The device is available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2575S offers a high-efficiency replacement for popular three-terminal linear regulators. It substantially reduces the size of the heat sink, and in many cases no heat sink is required. Applications of the LM2575S include simple high-efficiency step-down (buck) regulator, efficient pre-regulator for linear regulators, on-card switching regulators and positive to negative converter (Buck-Boost).

Parametrics

LM2575S absolute maximum ratings: (1)Maximum Supply Voltage: 45v; (2)Output Voltage to Ground (Steady State): -1V; (3)Power Dissipation: Internally Limited; (4)Storage Temperature Range: -65℃ to +150℃; (5)Maximum Junction Temperature: 150℃; (6)Minimum ESD Rating: 2kV; (7)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM2575S features: (1)3.3V, 5V, 12V, 15V, and adjustable output versions; (2)Adjustable version output voltage range, 1.23V to 37V (57V for HV version) ±4% max over line and load conditions; (3)Guaranteed 1A output current; (4)Wide input voltage range, 40V up to 60V for HV version; (5)Requires only 4 external components; (6)52 kHz fixed frequency internal oscillator; (7)TTL shutdown capability, low power standby mode; (8)High efficiency; (9)Uses readily available standard inductors; (10)Thermal shutdown and current limit protection; (11)P+ Product Enhancement tested.
