Product Summary

The L6599D is a double-ended controller specific for the resonant half-bridge topology. The L6599D provides 50% complementary duty cycle: the high-side switch and the low-side switch are driven ON 180°out-of-phase for exactly the same time. To drive the high-side switch with the bootstrap approach, the L6599D incorporates a high-voltage floating structure able to withstand more than 600V with a synchronous-driven high-voltage DMOS that replaces the external fast-recovery bootstrap diode. The L6599D enables the designer to set the operating frequency range of the converter by means of an externally programmable oscillator.

Parametrics

L6599D absolute maximum ratings: (1)VBOOT, pin 16 Floating supply voltage: -1 to 618 V; (2)VOUT, pin 14 Floating ground voltage: -3 to VBOOT -18 V; (3)dVOUT/dt, pin 14 Floating ground max. slew rate: 50 V/ns; (4)VCC, pin 12 IC Supply voltage (ICC ≤ 25 mA): Self-limited V; (5)VPFC_STOP, pin 9 Maximum voltage (pin open): -0.3 to VCC V; (6)IPFC_STOP, pin 9 Maximum sink current (pin low): Self-limited A; (7)VLINEmax, pin 7 Maximum pin voltage (Ipin ≤ 1mA): Self-limited V; (8)IRFmin, pin 4 Maximum source current: 2 mA; (9)pin 1 to 6, 8 Analog inputs & outputs: -0.3 to 5 V.

Features

L6599D features: (1)50% duty cycle, variable frequency control of resonant half-bridge; (2)High-accuracy oscillator; (3)Up to 500kHz operating frequency; (4)Two-level OCP: frequency-shift and latched shutdown; (5)Interface with PFC controller; (6)Latched disable input; (7)Burst-mode operation at light load; (8)Input for power-ON/OFF sequencing or brownout protection; (9)Non-linear soft-start for monotonic output voltage rise; (10)600V-rail compatible high-side gate driver with integrated bootstrap diode and high dV/dt immunity; (11)-300/800mA high-side and low-side gate drivers with UVLO pull-down; (12)DIP-16, SO-16N packages.

Diagrams

L6599D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

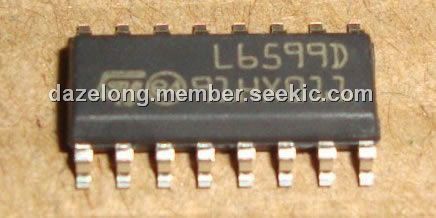

L6599D
L6599D

STMicroelectronics

Soft Switching PWM Controllers Hi Vltg resonant Controller

Data Sheet

Negotiable
L6599DTR
L6599DTR

STMicroelectronics

Soft Switching PWM Controllers Hi Vltg resonant Controller

Data Sheet

Negotiable
