Product Summary

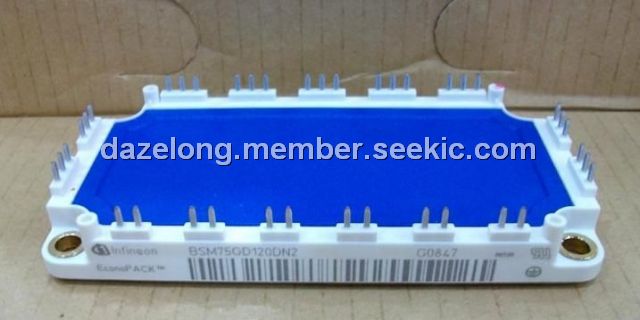

The BSM75GD120DN2 is an IGBT Power Module.

Parametrics

BSM75GD120DN2 absolute maximum ratings: (1)Collector-emitter voltage:1200V; (2)Collector-gate voltage, RGE = 20 kΩ:1200V; (3)Gate-emitter voltage:±20V; (4)DC collector current: TC = 25 ℃:103A, TC = 80 ℃:75A; (5)Pulsed collector current, tp = 1 ms: TC = 25 ℃:206A, TC = 80 ℃:150A; (6)Power dissipation per IGBT, TC = 25℃:520W; (7)Chip temperature:+150℃; (8)Storage temperature:-55℃ to +150℃.

Features

BSM75GD120DN2 features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

Diagrams

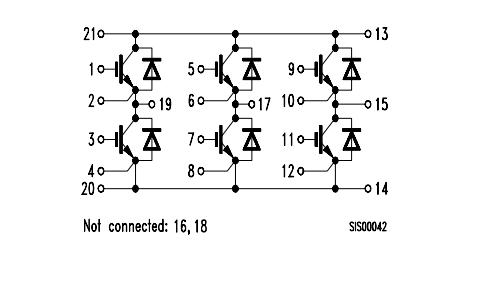

BSM75GD120DN2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM75GD120DN2
BSM75GD120DN2
Infineon Technologies
IGBT Modules 1200V 75A 3-PHASE
Data Sheet
0-1: $105.90
1-10: $95.31
