Product Summary
The ETN85-050 is a bipolar transistor module. It is suited for motor control applicaitons with 200V AC input and power supplies.
Parametrics
ETN85-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(sus): 450V; (4)IC count: 300A; (5)PC: 1200W; (6)hFE: 70 min; (7)switching time, ton: 2.0μs; tstg: 12μs; tf: 2.5μs.
Features
ETN85-050 features: (1)terminla layout in which drive wiring and power wiring do not come across; (2)suited for motor control applicaitons with 200V AC input and power supplies.

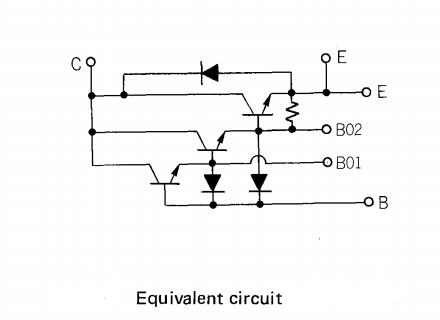

Diagrams
