Product Summary

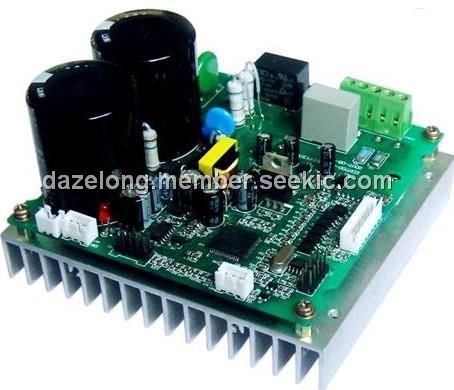

The EDS700 is a Hi-Performance, Single-Board Inverter. It has been applied cosmically to traverse weaving machine in textile industry.

Features

EDS700 features: (1)Small size, powerful function, extremely high cost performance ; (2)Be applied abroad to the control of various traverse machine; (3)Adopt space voltage vector SVPWM control; (4)Adopt independent 16 steps speed control, control is more accurate and convenient; (5)Have 16 kinds of accelerating/decelerating control mode which can be set respectively, which is suitable for complicated and changeable application; (6)Good adaptability to power supply, can be applied to rural power grids with big fluctuation; (7)Adopt lightningproof dual protection, more durable; (8)It adopts 32 bits special arithmetic for zero frequency DC braking, so machine head can come and go smoothly at high speed, and it obtains accurate orientation; (9)Built-in braking structure, needn’t connect braking resistance outside; (10)Built-in simple PLC function, traverse function, more extensive adaptability; (11)Containing failure memory function, which is more convenient for finding problems.

Diagrams

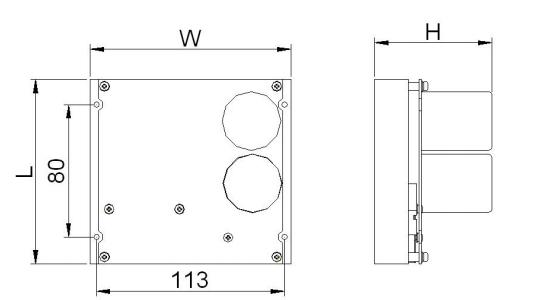

EDS700 package dimensions
