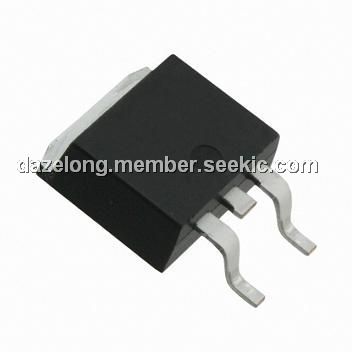

Product Summary

The BA09FP is a fixed positive output low drop-out type, 3-pin voltage regulator with positive output. The BA09FP is used to provide a stabilized output voltage from a fluctuating DC input voltage. There are 10 fixed output voltages, as follows:3V, 3.3V, 5V, 6V, 7V, 8V, 9V, 10V, 12V and 15V. The maximum current capacity is 1A for each of the above voltages. (Items marked with an asterisk are under development.). The BA09FP is suitable for Constant voltage power supply.

Parametrics

BA09FP absolute maximum ratings: (1)Power supply voltage VCC: 35 V; (2)Power dissipation, Pd: 2000 mW; (3)Operating temperature Topr: -40~85℃; (4)Storage temperature Tstg: -55~150℃; (5)Peak applied voltage, Vsurge: 50 V.

Features

BA09FP features: (1)Built-in overvoltage protection circuit, overcurrent protection circuit and thermal shutdown circuit; (2)TO220FP and TO252-3 packages are available to cover a wide range of applications; (3)Compatible with the BA17800 series; (4)Richly diverse lineup; (5)Low minimum I/O voltage differential.

Diagrams

BA09FP block digram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BA09FP-E2
BA09FP-E2
ROHM Semiconductor
Low Dropout (LDO) Regulators REGULATOR 9V 1A
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BA09CC0FP-E2
BA09CC0FP-E2
ROHM Semiconductor
Low Dropout (LDO) Regulators REG 1A 9V
Data Sheet
0-2000: $0.34
BA09CC0T
BA09CC0T
ROHM Semiconductor
Low Dropout (LDO) Regulators REG 1A 9V
Data Sheet
0-1: $1.03
1-25: $0.85
25-100: $0.68
100-500: $0.48
BA09CC0WFP-E2
BA09CC0WFP-E2
ROHM Semiconductor
Low Dropout (LDO) Regulators REG 1A 9V
Data Sheet
0-2000: $0.36
BA09CC0WT
BA09CC0WT
ROHM Semiconductor
Low Dropout (LDO) Regulators REG 1A 9V
Data Sheet
0-500: $0.50
500-1000: $0.47
BA09CC0WT-V5
BA09CC0WT-V5
ROHM Semiconductor
Low Dropout (LDO) Regulators LDO REG 9V 1A 5PIN
Data Sheet
0-500: $0.49
BA09FP-E2
BA09FP-E2
ROHM Semiconductor
Low Dropout (LDO) Regulators REGULATOR 9V 1A
Data Sheet
Negotiable
