Product Summary

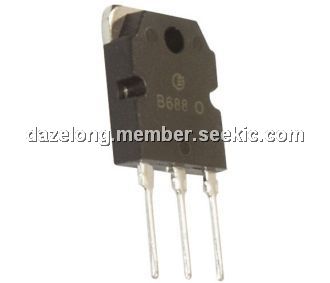

The 2SB688 is a PNP planar silicon transistor(audio power amplifier dc to dc converter).
Parametrics
2SB688 absolute maximum ratings: (1)Collector-Base Voltage: -160V; (2)Collector-Emitter Voltage: -120V; (3)Emitter-Base voltage: -6V; (4)Collector Current (DC): -8A; (5)Collector Dissipation: 80W; (6)Junction Temperature: 150℃; (7)Storage Temperature: -55 to 150℃.
Features
2SB688 features: (1)High Current Capability; (2)High Power Dissipation; (3)Complementary to 2SD718.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SB688 |
Other |
|
Data Sheet |
Negotiable |
|
||||
