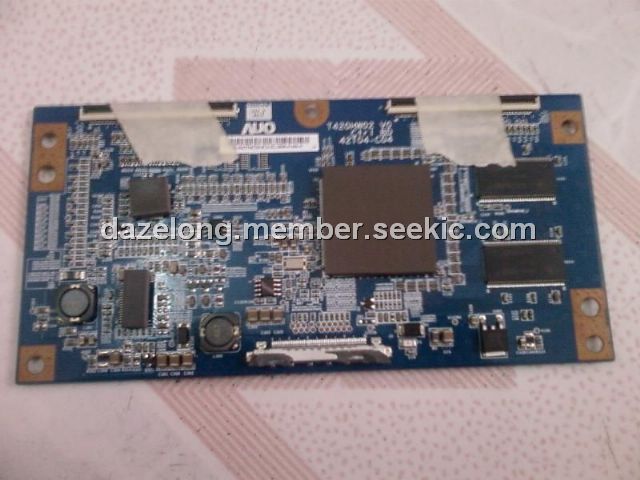

Product Summary

The T420HW02 V0 is a 42 inch Color TFT-LCD Module. This LCD module has a TFT active matrix type liquid crystal panel 1920*1080 pixels, and diagonal size of 42 inch. This module T420HW02 V0 supports 1920*1080 Full-HD mode (Non-interlace). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. The T420HW02 V0 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.

Parametrics

T420HW02 V0 absolute maximum ratings: (1)Power Supply Input Voltage VDD: -0.3 to 14 [Volt]; (2)Logic Input Voltage Vin: -0.3 to 3.6 [Volt]; (3)BLU Input Voltage VDDB: -0.3 to 26.4 [Volt]; (4)BLU Brightness Control Voltage BLON: -0.3 to 3.6 [Volt]; (5)Ambient Operating Temperature TOP: 0 to +50℃; (6)Ambient Operating Humidity HOP: 10 to 80 [%RH] 2 ; (7)Storage Temperature TST: -20 to +60 [℃]; (8)Storage Humidity HST: 10 to 80 [%RH].

Features

T420HW02 V0 features: (1)Active Area 930.24 × 523.26 mm; (2)Aspect Ratio 16:9; (3)Back Light CCFL; (4)Brightness 500; (5)Color Depth 8 Bit, 16.7 Million Colors; (6)Condition; (7)Connector Type 51 Pin; (8)Contrast Ratio 2500:1; (9)Format HD-1080.

Diagrams

T420HW02 V0 dimensions
