Product Summary
The STK392-570 is a power amplifer. It is suitable for projection TV etc use.
Parametrics
STK392-570 absolute maximum ratings: (1)supply votlage, VCC max: ±5V; (2)collector current, ICmax: ±8A; (3)thermal resistance, θj-c: 2.0℃/W; (4)junction temperature, Tj max: 150℃; (5)operating IC substrate temperature, Tc max: 125℃; (6)storage temperature, Tstg: -30 to 125℃.
Features
STK392-570 features: (1)convergence correction circuit 3 channels and output muting circuit.

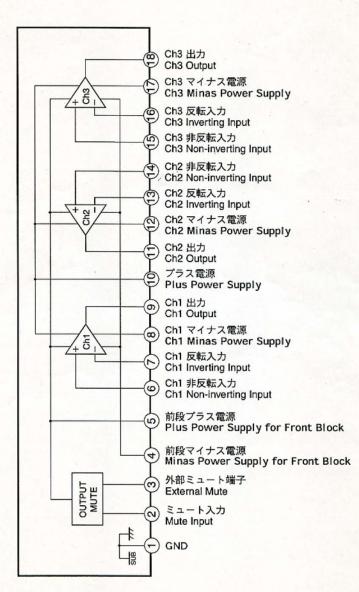

Diagrams
