Product Summary

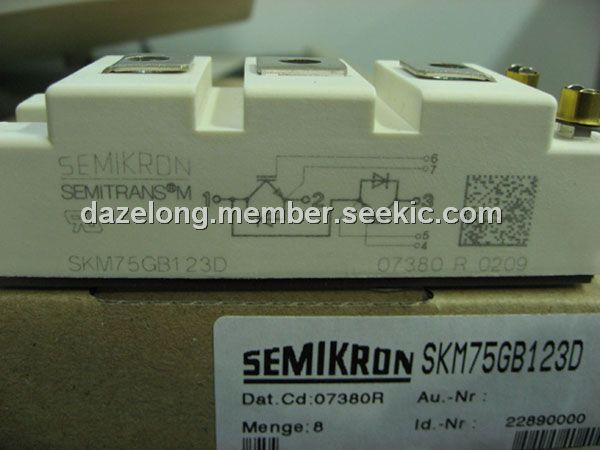

The SKM75GB123D is an IGBT module. The applications of it are AC inverter drives and UPS.
Parametrics
SKM75GB123D absolute maximum ratings: (1)VCES:1200v; (2)IC: Tcase=25℃:75A, Tcase=80℃:60A; (3)ICRM:150A; (4)VGES:±20V; (5)tpsc:10us; (6)Inverse diode IF: Tcase=25℃:75A, Tcase=80℃:50A; (7)Inverse diode IFRM:150A; (8)Inverse diode IFSM:480A; (9)Freewheeling diode IF: Tcase=25℃:95A, Tcase=80℃:65A; (10)Freewheeling diode IFRM:200A; (11)Freewheeling diode IFSM:720A; (12)It(RMS):200A; (13)Tvj:-40℃ to +150℃; (14)Tstg:-40℃ to +125℃; (15)Visol:2500V.
Features
SKM75GB123D features: (1)MOS input; (2)low inductance case; (3)very low tail current with low temperature dependence; (4)high short circuit capability, self limiting to 6*Icnom; (5)latch-up free; (6)fast & soft inverse CAL diodes; (7)isolated copper baseplate using DCB direct copper bonding technology; (8)large clearance and creepage distance.
