Product Summary

The R1446NS12E is a Distributed Gate Thyristor.

Parametrics

R1446NS12E absolute maximum ratings: (1)VDRM Repetitive peak off-state voltage: 1000-1200 V; (2)VDSM Non-repetitive peak off-state voltage: 1000-1200 V; (3)VRRM Repetitive peak reverse voltage: 1000-1200 V; (4)VRSM Non-repetitive peak reverse voltage: 1100-1300 V.

Features

R1446NS12E features: (1)VTM Maximum peak on-state voltage: 1.7 V; (2)V0 Threshold voltage: 1.304 V; (3)rS Slope resistance: 0.199 mΩ; (4)dv/dt Critical rate of rise of off-state voltage: 200 V/μs.

Diagrams

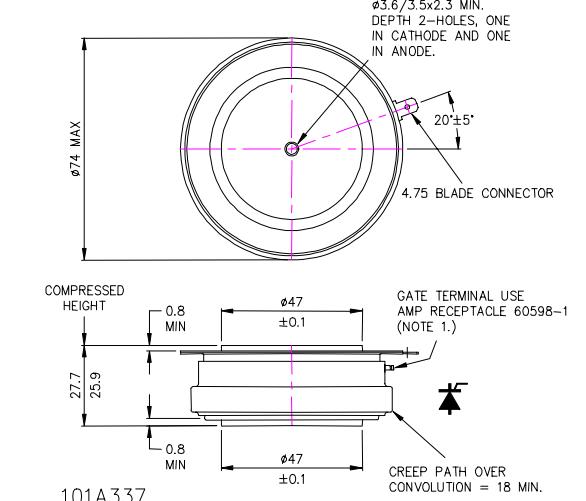

R1446NS12E dimensions

R144
R144
Apex Tool Group (Formerly Cooper Tools)

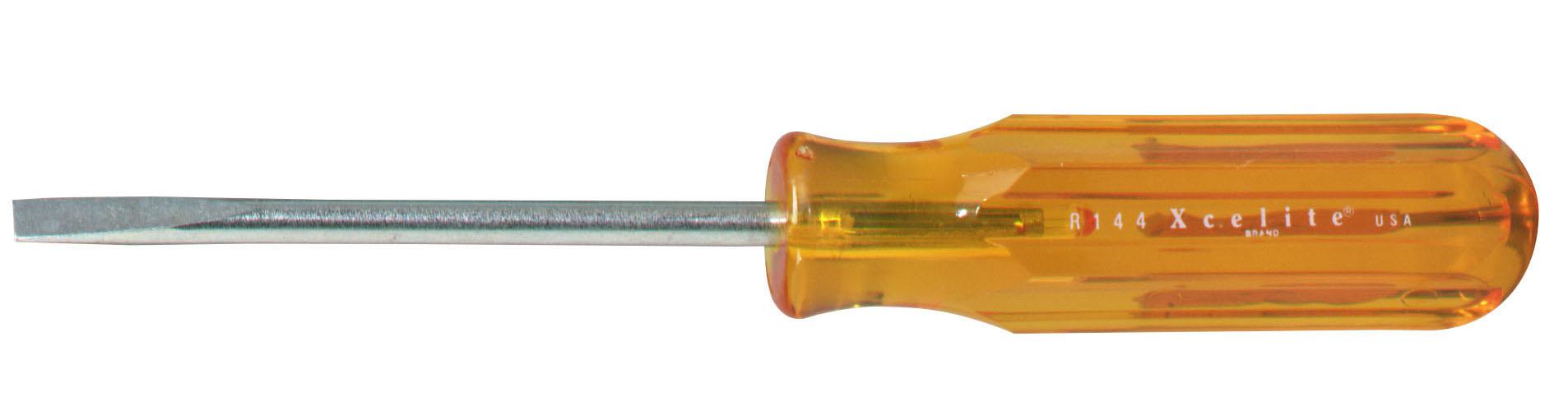

Screwdrivers, Nut Drivers & Socket Drivers Xcelite Screwdriver 1/4" x 4" Amber Hdl
