Product Summary

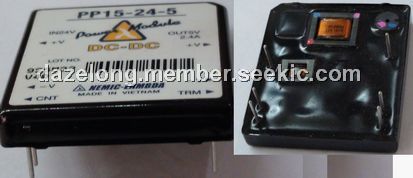

The PP15-24-15 is a Single output DC-DC converter.

Parametrics

PP15-24-15 absolute maximum ratings: (1)Input voltage range: DC4.5 ~ 7.2V; (2)Output voltage range: Fixed (PP15, PP25: +5% available with external resistor); (3)Cooling: Convection cooling.

Features

PP15-24-15 features: (1)Compact and single output DC-DC converter Ultra-thin profile: 8mm; (2)Wide input voltage range; (3)Operating temperature: –20 ~ +71℃; (4)Isolation between input and output; (5)PP15, PP25: Output voltage variable, on/off control; (6)3 year warranty.

Diagrams

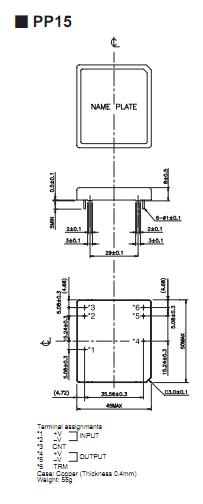

PP15-24-15 dimensions
