Product Summary
The LA6500 is a Power Operational Amplifier.
Parametrics
LA6500 absolute maximum ratings: (1)Maximum supply voltage VCC/VEE: ±18 V; (2)Differential input voltage VIDIf: 30 V; (3)Common-mode input voltage VICOM: ±15 V; (4)Output current Io max: 1.0 A; (5)Allowable power dissipation Pd max: 1.75 W; (6)Operating temperature Topr: –20 to +75℃; (7)Storage temperature Tstg: –55 to +150℃.
Features
LA6500 features: (1)High output current (Io max = 1.0 A); (2)High gain; (3)With current limiter; (4)Capable of being operated from single supply.

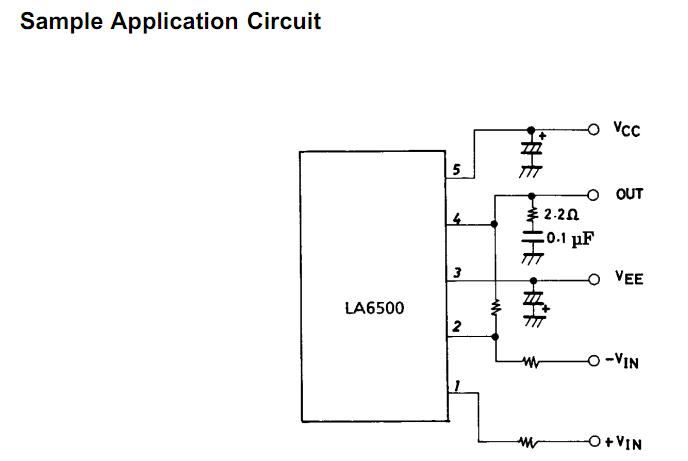

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA6500 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
LA6500-E |
ON Semiconductor |
Power Amplifiers POWER OP AMP |
Data Sheet |
|
|
||||||||||||
