Product Summary

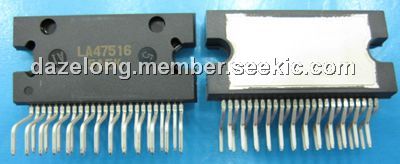

The LA47516 is a Monolithic Linear IC BTL (50W×4) Power IC.
Parametrics
LA47516 absolute maximum ratings: (1)Vccmax1: 26V; (2)VCCmax2: 18V; (3)IO peak: 4.5A; (4)PD max: 50W; (5)Topg: -40 to 85℃; (6)Tstg: -40 to 150℃.
Features
LA47516 features: (1)VCC: 14.4V; (2)RL: 4Ω; (3)VCCOP: 9-18V.
Diagrams
 |
