Product Summary

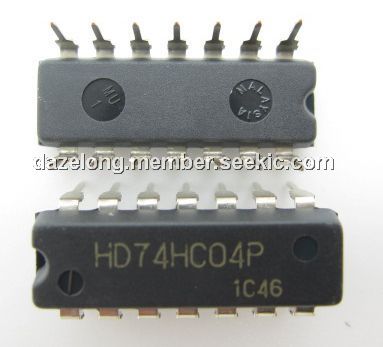

The HD74HC04P is a Hex Inverter.
Parametrics
HD74HC04P absolute maximum ratings: (1)input voltage, VIH: 2.0V; (2)output voltage, VOH: 2.0V; (3)input current, Iin: 6.0A; (4)quiescent supply current, ICC: 6.0A.
Features
HD74HC04P features: (1)High Speed Operation: tpd = 7.5 ns typ (CL = 50 pF); (2)High Output Current: Fanout of 10 LSTTL Loads; (3)Wide Operating Voltage: VCC = 2 to 6 V; (4)Low Input Current: 1 μA max; (5)Low Quiescent Supply Current: ICC (static) = 1 μA max (Ta = 25℃).

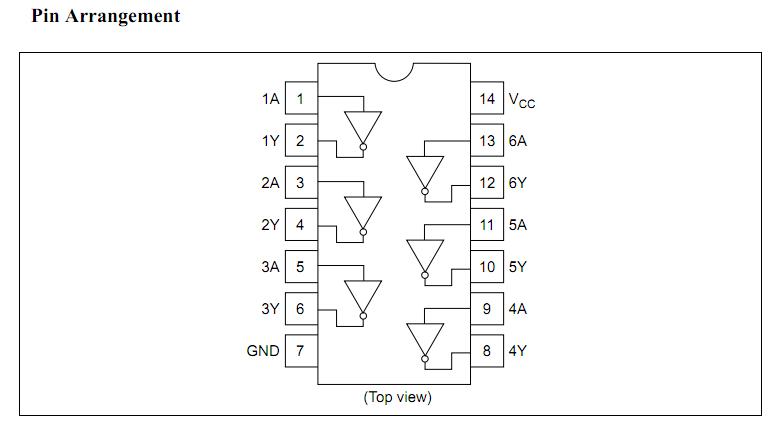

Diagrams
 |
