Product Summary

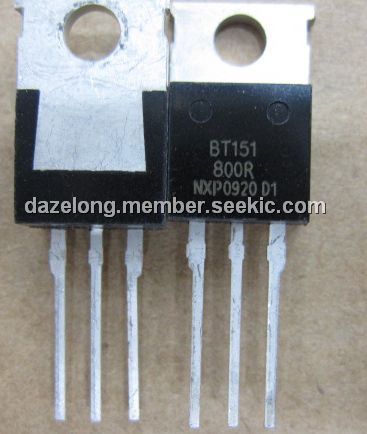

The BT151-800R is a Planar passivated SCR (Silicon Controlled Rectifier) in a SOT78 plastic package. The applications of the device are Ignition circuits, Motor control, Protection Circuits and Static switching.
Parametrics
BT151-800R absolute maximum ratings: (1)VDRM repetitive peak off-state voltage: 800V; (2)VRRM repetitive peak reverse voltage: 800V; (3)IT(AV) average on-state curren: 7.5A; (4)IT(RMS) RMS on-state current: 12A; (5)dIT/dt rate of rise of on-state current: 50 A/μs; (6)IGM peak gate current: 2 A; (7)PGM peak gate power: 5 W; (8)Tstg storage temperature: -40 to 150℃; (9)Tj junction temperature: 125℃; (10)ITSM non-repetitive peak on-state current: 132 A; (11)I2t I2t for fusing tp = 10 ms; sine-wave pulse: 72 A2s; (12)PG(AV) average gate power over any 20 ms period : 0.5 W; (13)VRGM peak reverse gate voltage: 5V.
Features
BT151-800R features: (1)High reliability; (2)High surge current capability; (3)High thermal cycling performance.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BT151-800R |
NXP Semiconductors |
SCRs RAIL SCR |
Data Sheet |
Negotiable |
|
|||||||||||||
BT151-800R,127 |
NXP Semiconductors |
SCRs RAIL SCR |
Data Sheet |
|
|
