Product Summary
The AN80T05 is a silicon monolithic bipolar IC.
Parametrics
AN80T05 absolute maximum ratings: (1)storage temperature, Tstg: -55 to 150℃; (2)operating ambient temperature, Topr: -30 to 85℃; (3)operating ambient pressure, Port: 1.013×105±0.61×105 Pa; (4)operating constant acceleration, Gopr: 9810m/S2; (5)operating shock, Sopr: 4900m/S2; (6)power supply votlage, VCC: 26V; (7)power supply current, ICC: 3.8A; (8)power dissipation, PD: 2.7W.
Features
AN80T05 features: (1)7 outputs voltage regulator; (2)peak current protection circuit, ASO protection circuit, thermal protection circuit.

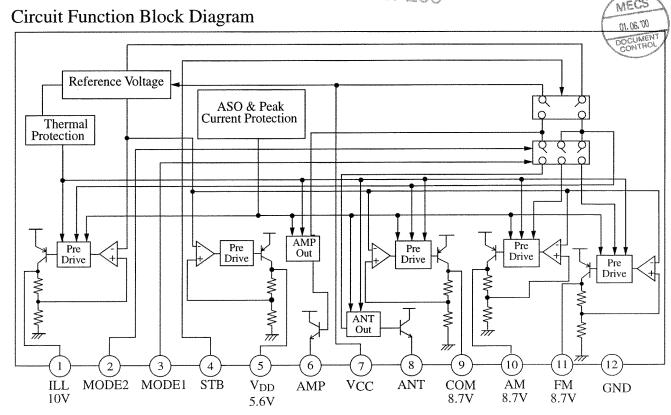

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AN80T05 |
IC CONTROL CAR AUDIO SIL-12 |
Data Sheet |
|
|
||||||||||||||||||
AN80T05LF |
IC CONTROL CAR AUDIO SIL-12 |
Data Sheet |
|
|
