Product Summary

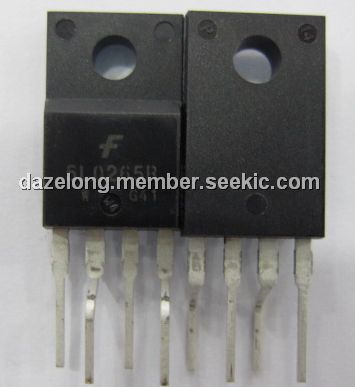

The 5L0265R is a Fairchild Power Switch(FPS) specially designed for an off-line SMPS with minimal external components. The 5L0265R consists of high voltage power SenseFET and current mode PWM IC. Included PWM controller features integrated fixed oscillator, under voltage lock out, leading edge blanking, optimized gate turn-on/turn-off driver, thermal shut down protection, over voltage protection, and temperature compensated precision currentsources for loop compensation and fault protection circuitry-compared to discrete MOSFET and controller or RCC switching converter solution.

Parametrics

5L0265R absolute maximum ratings: (1)Drain-Gate Voltage (RGS=1MΩ)VDGR: 650 V; (2)Gate-Source (GND) Voltage VGS: ±30 V; (3)Drain Current Pulsed IDM: 8.0 ADC; (4)Continuous Drain Current (TC=25℃) ID: 2.0 ADC; (5)Continuous Drain Current (TC=100℃) ID: 1.3 ADC; (6)Single Pulsed Avalanche Energy EAS: 68 mJ; (7)Maximum Supply Voltage VCC,MAX: 30 V; (8)Analog Input Voltage Range VFB: -0.3 to VSD V; (9)Total Power Dissipation PD: 42 W; (10)Operating Junction Temperature. TJ: +160℃; (11)Operating Ambient Temperature. TA: -25 to +85℃; (12)Storage Temperature Range. TSTG: -55 to +150℃.

Features

5L0265R features: (1)Precision Fixed Operating Frequency (100/67/50kHz); (2)Low Start-up Current (Typ. 100uA); (3)Pulse by Pulse Current Limiting; (4)Over Load Protection; (5)Over Voltage Protection (Min. 25V); (6)Internal Thermal Shutdown Function; (7)Under Voltage Lockout; (8)Internal High Voltage Sense FET; (9)Auto-Restart Mode.

Diagrams

5L0265R block diagram
