Product Summary

The IRF3707 is a SMPS MOSFET. The applications are (1)High Frequency DC-DC Isolated Converters with Synchronous Rectification for Telecom and Industrial use; (2)High Frequency Buck Converters for Computer Processor Power.

Parametrics

IRF3707 absolute maximum ratings: (1)VDS Drain-Source Voltage: 30 V; (2)VGS, Gate-to-Source Voltage: ± 20 V; (3)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 62A; (4)ID @ TC = 70℃ Continuous Drain Current, VGS @ 10V: 52 A; (5)IDM Pulsed Drain Current: 248A; (6)PD @TC = 25℃ Maximum Power Dissipation: 87 W; (7)PD @TC = 70℃ Maximum Power Dissipation: 61 W; (8)Linear Derating Factor: 0.59mW/℃; (9)TJ , TSTG Junction and Storage Temperature Range: -55 to + 175℃.

Features

IRF3707 features: (1)Ultra-Low Gate Impedance; (2)Very Low RDS(on); (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

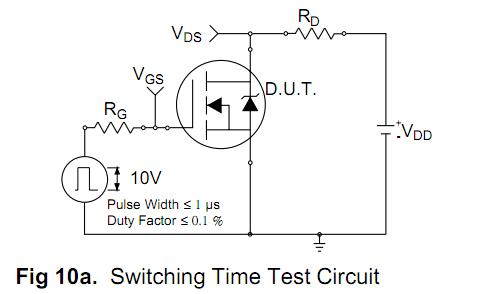

IRF3707 test circuit
