Product Summary

The FS50R12KE3 is an IGBT Module.

Parametrics

FS50R12KE3 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 50A/75A; (3)repetitive peak collector current: 100A; (4)total power dissipation: 270W; (5)gate-emitter peak voltage: ±20V; (6) DC forward current: 50A; (7) repetitive peak forward current: 100A; (8) insulation test voltage: 2.5kV.

Features

FS50R12KE3 features: (1)Compact Design; (2)Solder Contact Technology; (3)Rugged mounting due to integrated mounting clamps.

Diagrams

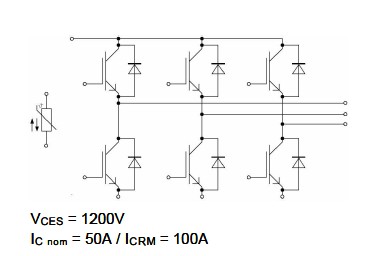

FS50R12KE3 circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FS50R12KE3
FS50R12KE3

Infineon Technologies

IGBT Modules 1200V 50A 3-PHASE

Data Sheet

0-1: $60.52
1-5: $57.49
5-10: $54.46
