Product Summary

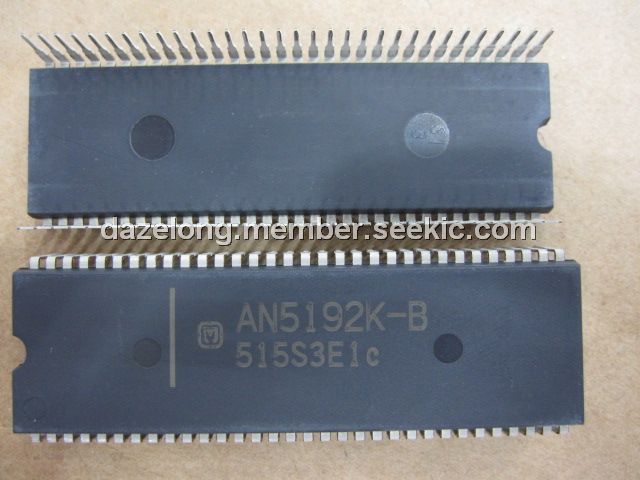

The AN5192K-B is a single chip IC for PAL/NTSC system color TV. TV for multiple systems can be easily designed by the use of this IC in combination with SECAM demodulation IC (The AN5637). The AN5192K-B is suitable for TV, TV with VCR.
Parametrics
AN5192K-B absolute maximum ratings: (1)Supply voltage, VCC: VCC1 (14) to 10.5 V; VCC3 (23, 47) to 6.0V; (2)Supply current, ICC: I14 to 77 mA; I23+47 to 119mA; I51 to 27mA; (3)Power dissipation, PD: 1 to 372 mW; (4)Operating ambient temperature, Topr: -20 to +70℃; (5)Storage temperature, Tstg: -55 to +150℃.
Features
AN5192K-B features: (1)Free of mechanical adjustment Built-in I2C bus interface eliminates the need for mechanical adjustment; (2)Rationalization of external components Built-in chroma trap and BPF reduce the external components.

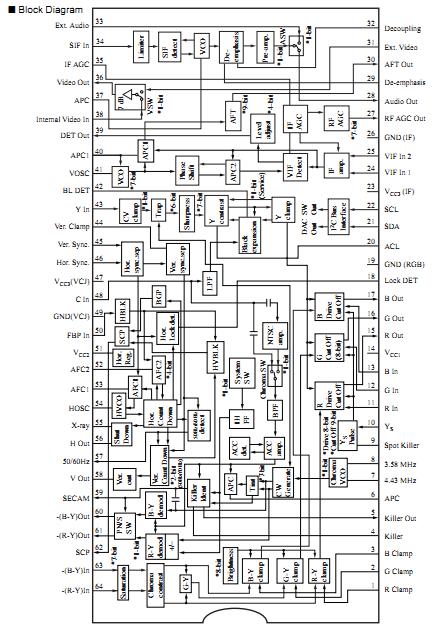

Diagrams
 |
