Product Summary
The 2SD1047 is an NPN triple diffused Ppanar silicon transistor which is used in 140V/12A AF 60W output applications.
Parametrics
2SD1047 absolute maximum ratings: (1)Collector-to-base voltage: (-)160 V; (2)Collector-to-emitter voltage: (-)140 V; (3)Emitter-to-base voltage: (-)6 V; (4)Collector current: (-)12 V; (5)Collector current( pulse): (-)15 A; (6)Collector dissipation, Tc=25℃: 100 W; (7)Junction temperature: 150 ℃; (8)Storage temperature: -40 to +150℃.
Features
2SD1047 features: (1)Capable of being mounted easily because of one-point fixing type plastic molded package (Inter-changeable with TO-3); (2)Wide ASO because of on-chip ballast resistance; (3)Good depenedence of fT on current and excellent high frequency responce.

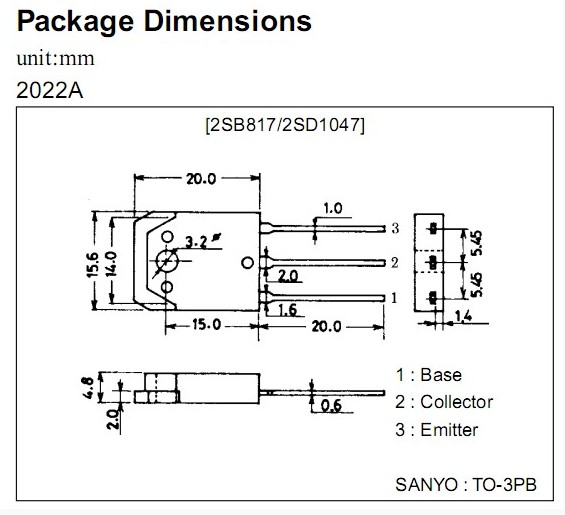

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD1047 |
STMicroelectronics |
Transistors Bipolar (BJT) IGBT & Power Bipolar |
Data Sheet |
|
|
||||||||||||
 |
2SD1047P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
2SD1047P-E |
|
TRANS NPN 140V 12A TO-3PB |
Data Sheet |
Negotiable |
|
||||||||||||
